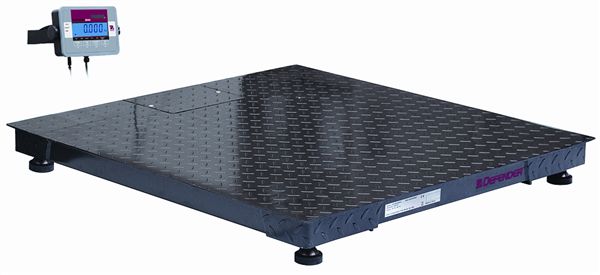

DF Series
Economical Floor Scale for Basic Industrial Applications

DF32M3000BX

Maximum Capacity 3,000 kg
Readability 1 kg
Platform Size 1,500 mm x 1,500 mm
Item Number: 83997593
Overview
OHAUS Defender 3000 Series of floor scales are the best value for all your heavy-duty weighing needs. Available in both square and rectangular designs, corresponding ramps and mounting accessories, and with the added benefit of pit mounting options, the OHAUS Defender 3000 floor platforms and scales offer a unique combination of value, quality and dependability that your company can rely on.
Applications
Weighing, Parts Counting, Checkweighing, Accumulation, Display Hold
Display
T32MC: Backlit liquid crystal display (LCD) T32ME: Light-emitting diode display (LED)
Operation
AC adapter (included)
Communication
Easy access communication port including RS232 interface (included)
Construction
Front ABS/rear painted carbon steel indicator and mounting bracket, black painted steel treaded platform, IP65 stainless steel junction box, 5mm thick fixed top plate, 4 H8C IP67 OIML R60 alloy steel load cells, pit frames and ramps (accessories sold separately)
Design Features
150% overload capacity protection
Specifications
Maximum Capacity 3,000 kg
Readability 1 kg
Platform Size 1,500 mm x 1,500 mm
Communication RS232 (Included)
Dimensions 110 mm x 1,500 mm x 1,500 mm
Display LCD with white LED backlight
Legal for Trade EC Type Approvable
Net Weight 249 kg
Outputs Not Applicable
Platform Construction Painted Steel Diamond Plate
Power AC Adapter (Included)
Protection Rating Not Applicable
Tare Range To capacity by subtraction
Units of Measurement Gram;Kilogram;Ounce;Pound:Ounce
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Accessories

Item Number

80500525

Description

Cable, RS232, IBM 9P, AV DV MB Ranger

Item Number

30064202

Description

Printer, Impact, SF40A, EU

Item Number

80252725

Description

Ramp, 1500mm, Painted, DF-B

Item Number

83033711

Description

Pit Frame, 1500x1500mm, Painted, DF-B
