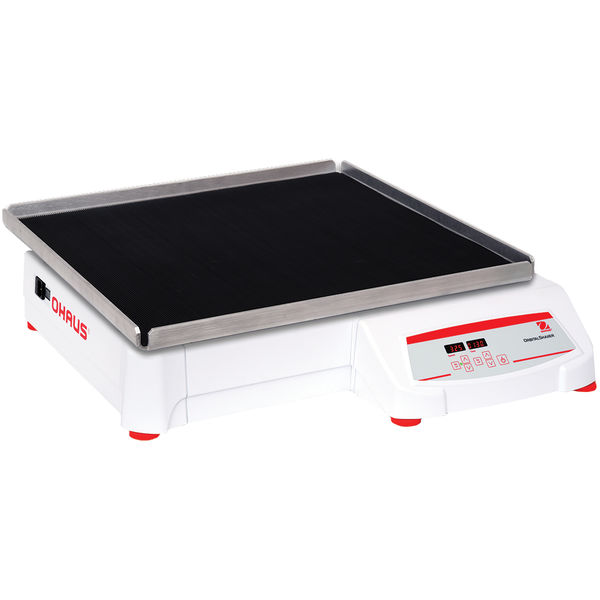

Heavy Duty Orbital Shakers
Eight Orbital Shakers Offering a Variety of Capacities and Flexibility to Maximize Sample Processing

SHHD4550DG

Motion Orbital, 51 mm
Capacity 45.4 kg
Speed Range 15 rpm – 300 rpm
Item Number: 30391872
Overview
OHAUS Heavy Duty Shakers are designed to handle a wide range of applications no matter how difficult the task. Powerful, convenient shakers provide consistent orbital shaking action. Digital models offer accurate speed control for applications that demand repeatable results. Non-digital models are an economical alternative. Maximize throughput and efficiency in your laboratory - eight models with load capacities ranging from 16 to 68 kg.
Applications
Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction
Cold rolled steel (CRS)
Design Features
Built-in tray (11 x 13 inch or 28 x 33 cm) with a non-slip rubber mat (included)
Specifications
Motion Orbital, 51 mm
Capacity 45.4 kg
Speed Range 15 rpm – 300 rpm
Tray Size (LxW) 24 in x 24 in (61 cm x 61 cm)
Control Digital
Drive System Brushless DC Motor;Triple Eccentric
Calibration Speed calibration
Communication RS232 (Included)
Dimensions 6.7 in x 28.7 in x 26.7 in (17 cm x 72.9 cm x 67.8 cm)
Net Weight 199.1 lb (90.3 kg)
Orbit 2 in (51 mm)
Power 230V, 2.5A, 50/60Hz
Power Consumption 80 W
Safety Certification CE;TUV
Speed Accuracy ±1 rpm, Above 100 rpm ±1% of set speed
Speed Range 15 rpm – 300 rpm
Timer 1 second – 160 hours
Tray Construction Aluminum
Working Environment 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
Accessories

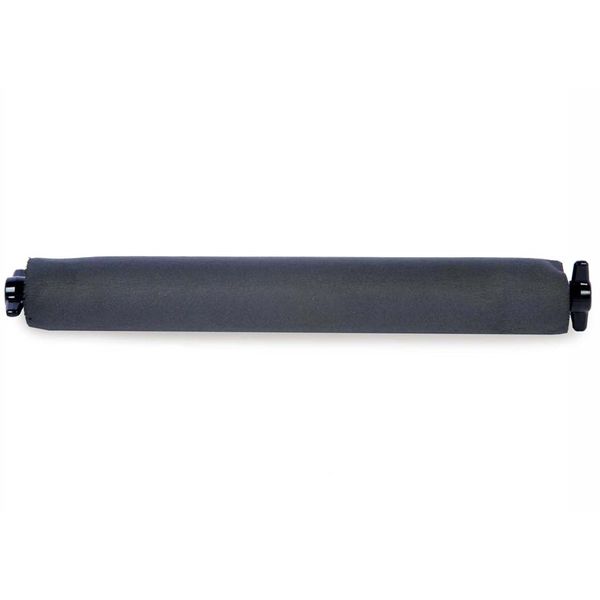

Item Number

30400074

Description

Adjustment Bar, 61 cm

Item Number

30400120

Description

Test Tube Rack For 50 mL Tubes

Item Number

30400119

Description

Test Tube Rack For 15 mL Tubes

Item Number

30400118

Description

Test Tube Rack 22-25 mm Diameter

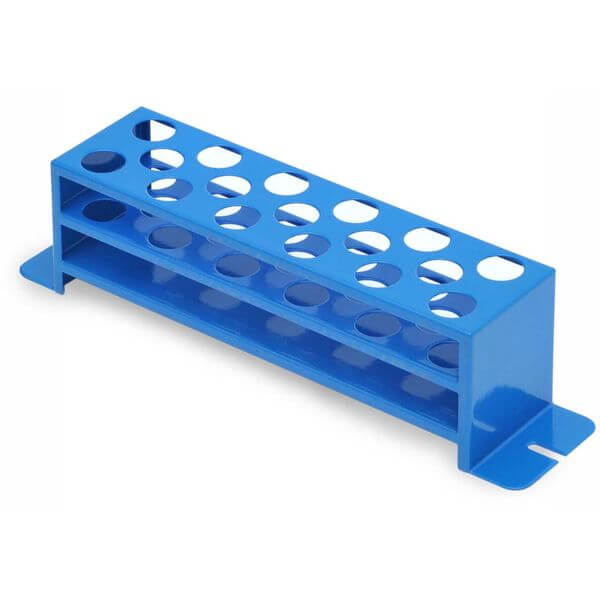

Item Number

30400113

Description

Test Tube Rack 50 mL Tubes Stationary

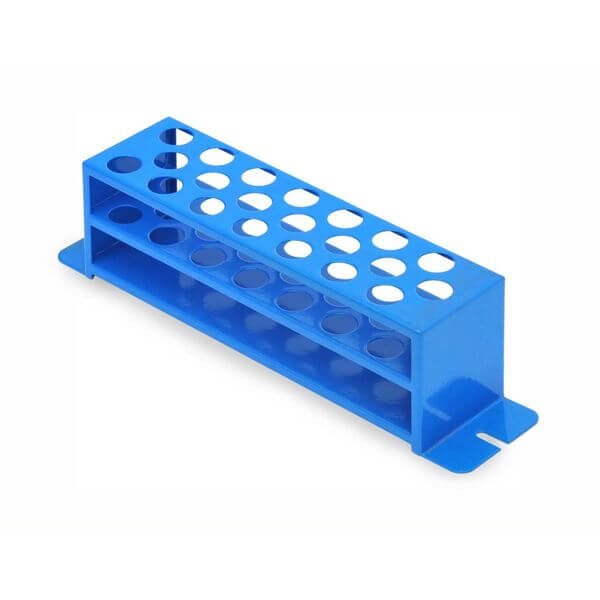

Item Number

30400112

Description

Test Tube Rack 21-25 mm Stationary

Item Number

30400111

Description

Test Tube Rack 16-20 mm Stationary

Item Number

30400117

Description

Test Tube Rack 18-20 mm Diameter

Item Number

30400115

Description

Test Tube Rack 10-13 mm Diameter

Item Number

30400090

Description

1 Liter Erlenmeyer Flask Clamp

Item Number

30400089

Description

Flask Clamp, 500 mL

Item Number

30400110

Description

Test Tube Rack 10-14 mm Stationary

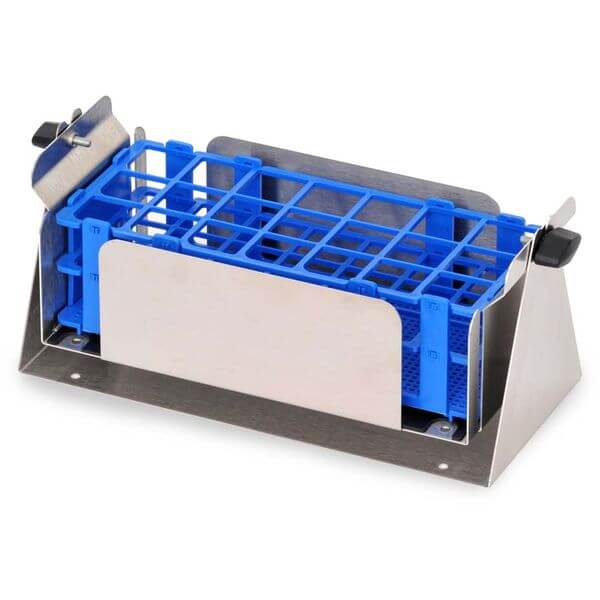

Item Number

30400109

Description

Test Tube Rack 30 mm Pivoting

Item Number

30400108

Description

Test Tube Rack 25 mm Pivoting

Item Number

30400107

Description

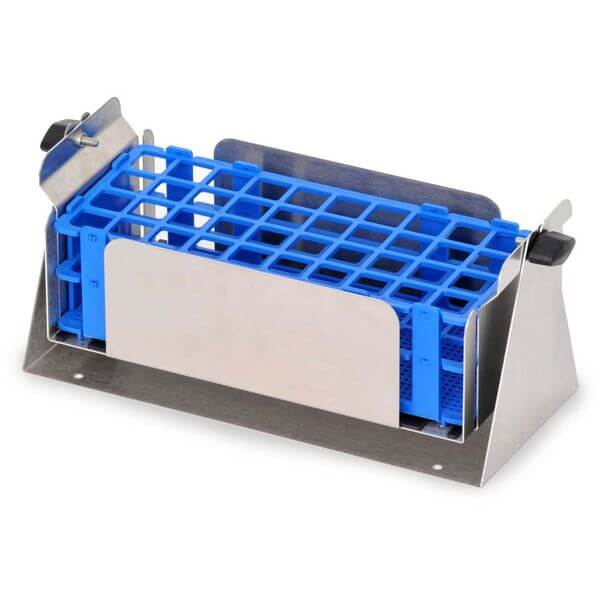

Test Tube Rack 20 mm Pivoting

Item Number

30400088

Description

Flask Clamp, 250 mL

Item Number

30400087

Description

Flask Clamp, 125 mL

Item Number

30400086

Description

Flask Clamp, 50 mL

Item Number

30400085

Description

Flask Clamp, 25 mL

Item Number

30400106

Description

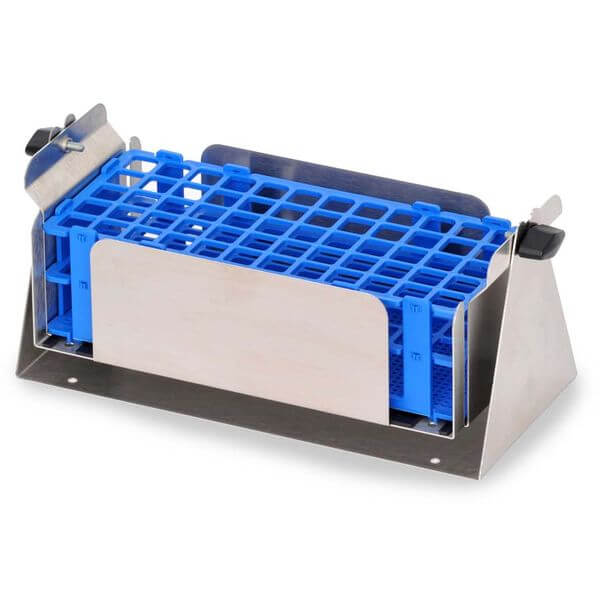

Test Tube Rack 16 mm Pivoting

Item Number

30400105

Description

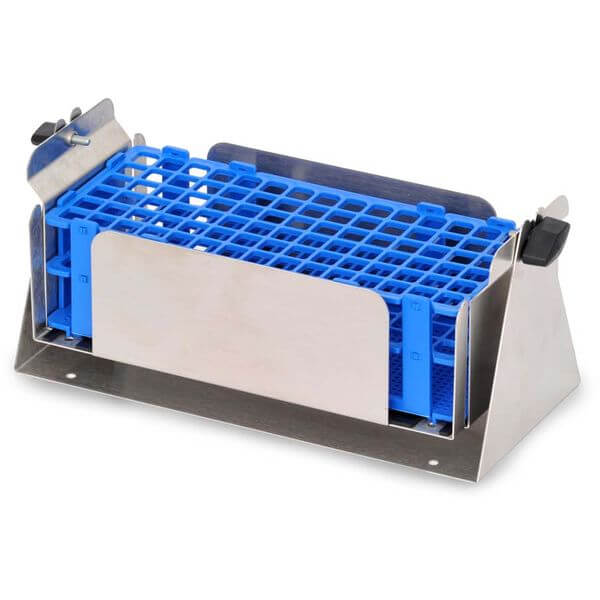

Test Tube Rack 13 mm Pivoting

Item Number

30400104

Description

Clamp Microplate Stainless Steel

Item Number

30400103

Description

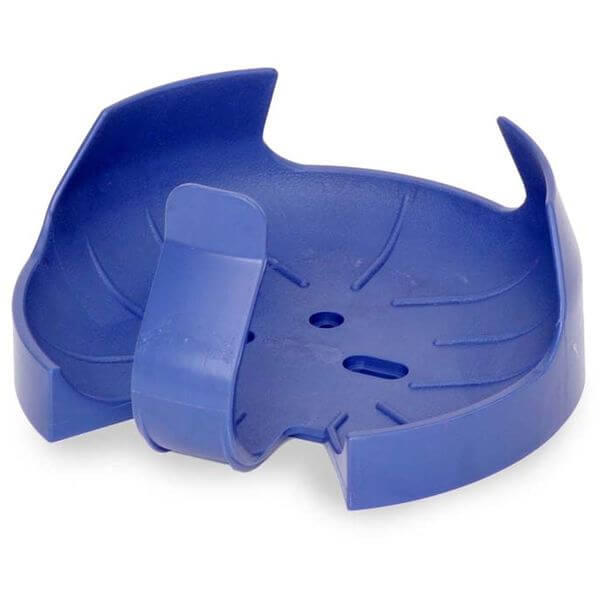

Flask Clamp PVC 2000mL

Item Number

30400100

Description

Flask Clamp PVC 250mL

Item Number

30400099

Description

Flask Clamp PVC 125mL

Item Number

30400097

Description

500 mL Media Bottle Clamp

Item Number

30400096

Description

6 Liter Erlenmeyer Flask Clamp

Item Number

30400095

Description

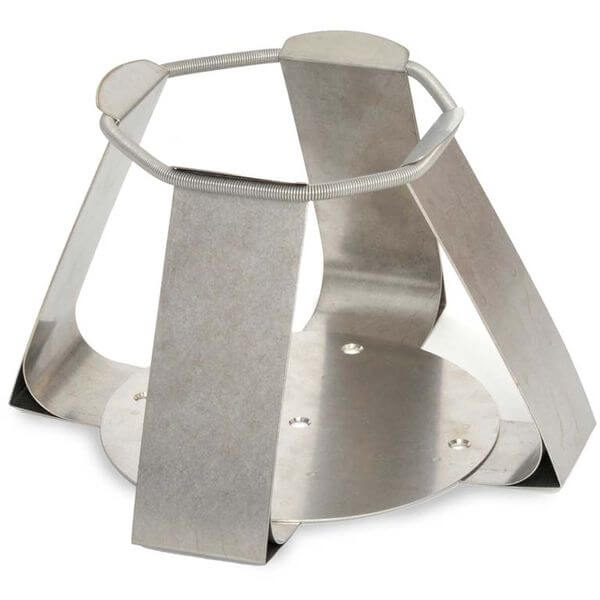

5 Liter Erlenmeyer Flask Clamp

Item Number

30400094

Description

4 Liter Erlenmeyer Flask Clamp

Item Number

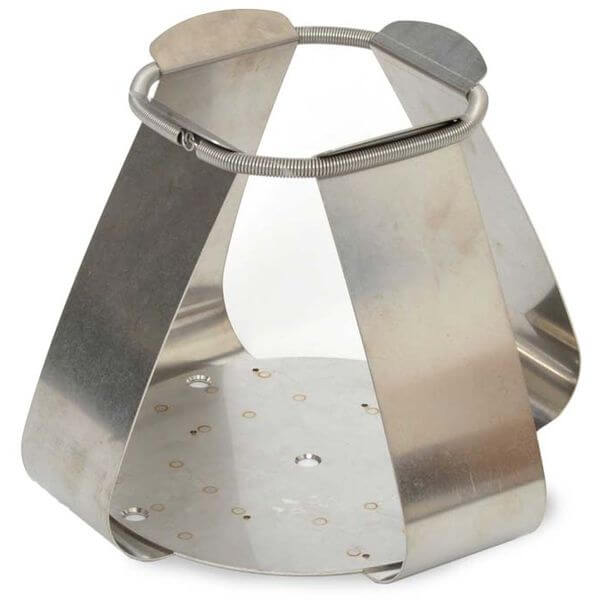

30400093

Description

3 Liter Erlenmeyer Flask Clamp

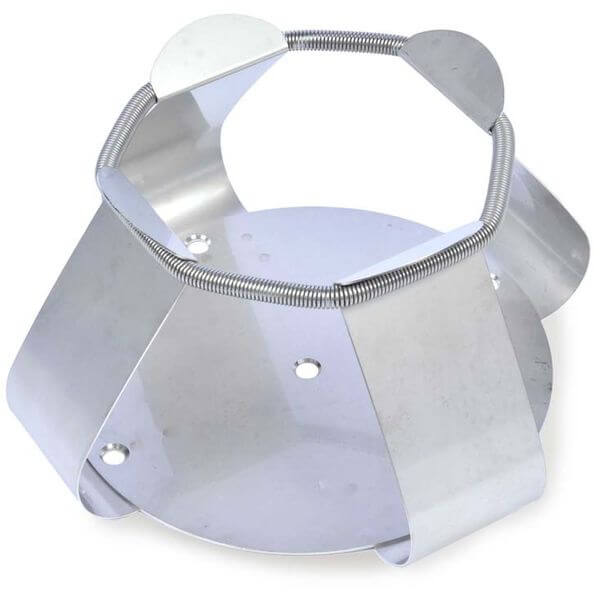

Item Number

30400092

Description

2.8 Liter Erlenmeyer Flask Clamp

Item Number

30400084

Description

Flask Clamp, 10 mL

Item Number

30400071

Description

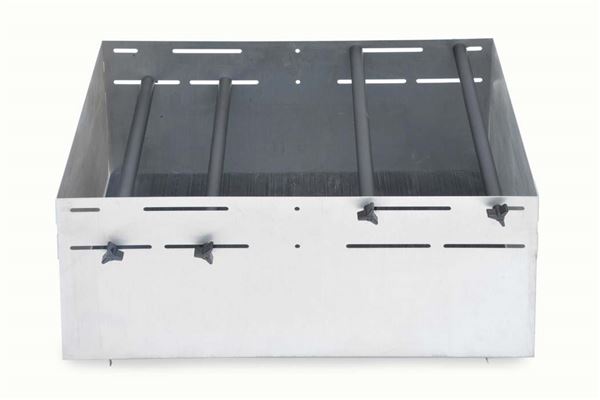

Large Vessel Carrier, 61 X 61 cm

Item Number

30400057

Description

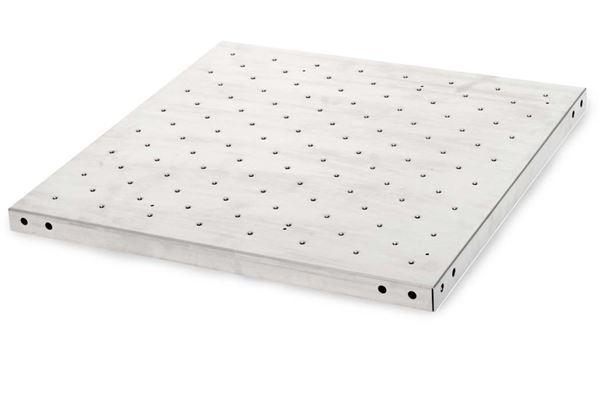

Universal Platform, 61 X 61 cm, S/S

Item Number

30400064

Description

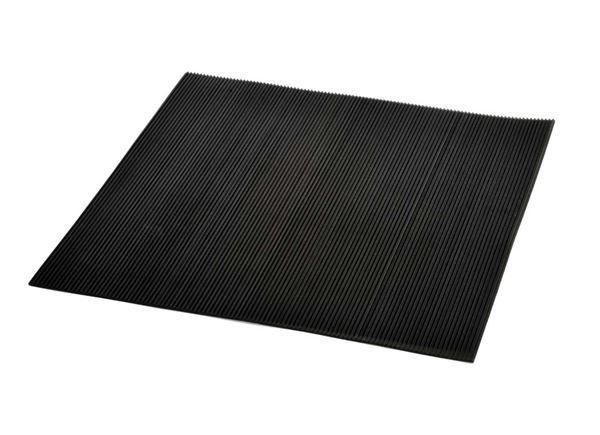

Rubber Mat, 61 X 61 cm

Item Number

30400098

Description

1000 mL Media Bottle Clamp

Item Number

30400091

Description

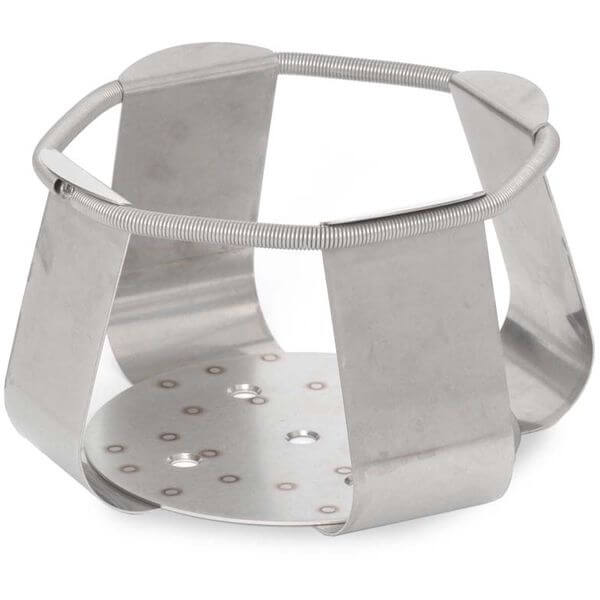

2 Liter Erlenmeyer Flask Clamp

Item Number

30400101

Description

Flask Clamp PVC 500mL

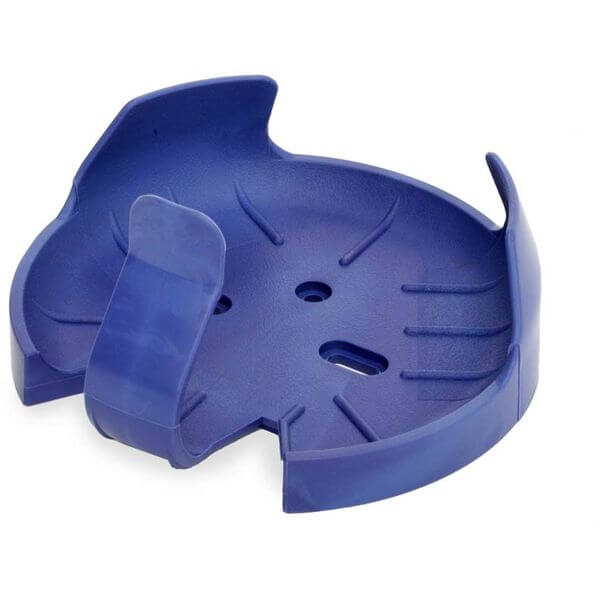

Item Number

30400102

Description

Flask Clamp PVC 1000mL

Item Number

30400116

Description

Test Tube Rack 14-16 mm Diameter
