Defender™ 5000 Pallet Scales - DFP52
Prime German quality Pallet Scales Full-fill Even the Most demanding Industry Applications

DFP52P600J1-M

Maximum Capacity 600 kg
Readability 0.2 kg
Readability (Certified) 0.2 kg
Item Number: 30525451
Overview

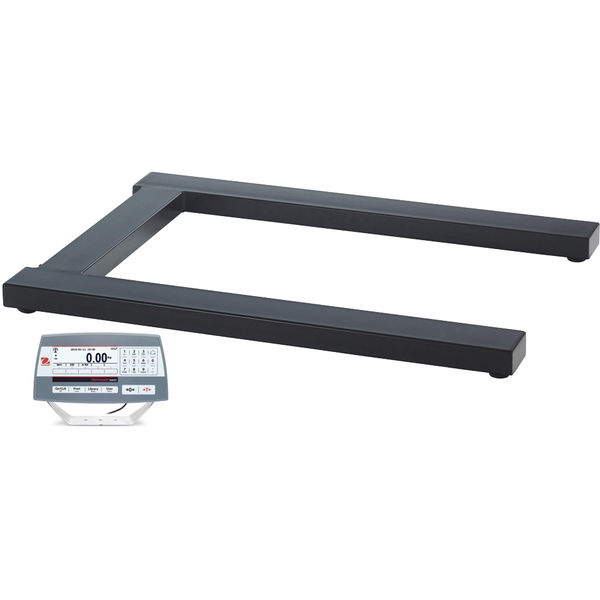

The OHAUS next generation Defender 5000 Series Pallet Scale is a solid lineup of painted steel and stainless steel platforms and scales. Its high-quality German engineered construction, with stainless steel IP68 hermetically sealed load cells ensure durability and reliability that will withstand years of daily usage in industrial environments.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
ABS plastic indicator, black painted steel U-frame, IP67 stainless steel junction box, IP68 OIML R60 electro-polished stainless steel load cells
Design Features
Structural channel bracing and pendulum design feet with removable rubber cap, 150% overload protection. Checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare.
Specifications
Maximum Capacity 600 kg
Readability 0.2 kg
Readability (Certified) 0.2 kg
Platform Size 1,256 mm x 840 mm
Battery Life 20 Hours with Rechargeable Battery
Communication Ethernet (Available as an Accessory);  2nd RS232/RS485/USB (available as an accessory);  RS232 (Included);  USB Host (Available as an Accessory);  WiFi/Bluetooth (available as an accessory)
Dimensions 1,256 mm x 78 mm x 840 mm (LxHxW)
Display Dot matrix LCD with white LED backlight
Legal for Trade EC Type Approved
Net Weight 50.5 kg
Outputs 4 - 20mA;  2 In/4 Out digital I/O
Platform Construction Stainless Steel
Power Rechargeable Battery (Not Included);  AC Power (Included)
Protection Rating Not Applicable
Units of Measurement Metric Tons;  Gram;  Kilogram
Working Environment -10°C – 40°C, 85%RH, non-condensing
Accessories

Item Number

30424404

Description

2nd RS232/RS485/USB Kit TD52 DT61XW

Item Number

30064202

Description

Printer, Impact, SF40A, EU

Item Number

30424021

Description

Alarm Beacon Kit 3 Colors 243mm OHAUS

Item Number

30424403

Description

Analog Output Kit, TD52 DT61XW

Item Number

30472064

Description

Auxiliary display AD7-RS

Item Number

80500525

Description

Cable RS232 IBM 9P Male-to-Female

Item Number

30057595

Description

Cable, RS232, 1.5m, R71 to balance

Item Number

30097591

Description

Discrete I/O Kit, R71 TD52 DT61XW

Item Number

30429666

Description

Ethernet kit Defender Series

Item Number

30531244

Description

Floor Stand 990mm/39in Painted

Item Number

30539553

Description

Floor Stand 990mm/39in SST

Item Number

30469948

Description

In-Use-Cover, Set(10), TD52P

Item Number

30424022

Description

In-Use-Cover, TD52P

Item Number

30424405

Description

Rechargeable battery Li-ion TD52

Item Number

30424406

Description

USB Host Interface for Dongle TD52

Item Number

30572923

Description

USB host interface for flash drive

Item Number

30424027

Description

Wall Mount Kit, CS, TD52P

Item Number

30412537

Description

Wireless Dongle MTICWD-200
