View All Products   |   Floor Scales   /   Defender™ 5000 Washdown Low Profile Floor Scale Platforms   /   DFD1500WL
Enlarge

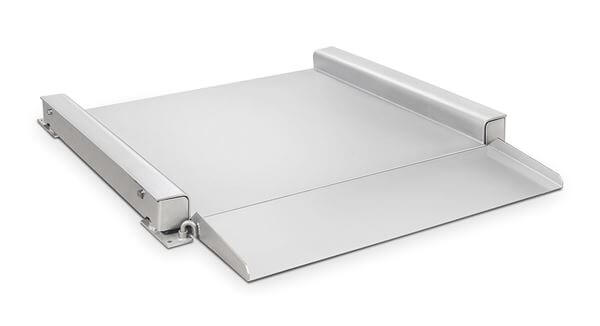

Defender™ 5000 Washdown Low Profile Floor Scale Platforms
Stainless Steel Low-Profile Floor Platform for Drive-Through Applications

DFD1500WL

Maximum Capacity 1,500 kg
Readability 0.5 kg
Readability (Certified) 0.5 kg
Item Number: 30540664
Request a Quote ADD TO QUOTE LIST
View All Defender™ 5000 Washdown Low Profile Floor Scale Platforms Models
Overview
The Defender 5000 Series Stainless Steel Low Profile Platform combines durable construction and an ultra-low height. Featuring a stainless steel platform, built-in ramp, four IP68 stainless steel load cells (with adjustable feet), the ultra-low design simplifies the job of moving goods on and off the platform.
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction
Stainless steel platform, IP67 stainless steel junction box, (4) OIML R60 IP68 stainless steel load cell and a front access stainless steel ramp
Design Features
150% capacity overload protection, painted and stainless steel floor stands (available as accessories)
Specifications
Maximum Capacity 1,500 kg
Readability 0.5 kg
Readability (Certified) 0.5 kg
Platform Size 1,250 mm x 1,250 mm
Protection Rating IP67
Legal for Trade EC Type Approvable
Dimensions 1,550 mm x 114 mm x 1,436 mm (LxHxW)
Net Weight 195 kg
Platform Construction Stainless Steel
Working Environment -10°C – 40°C, 85%RH, non-condensing
Accessories

Item Number

30424409

Description

Cable Extension 9m D52

Request a Quote Add To Quote List Remove From Quote List

Item Number

30429931

Description

Cable Kit Extension for base

Request a Quote Add To Quote List Remove From Quote List

Item Number

30571737

Description

Ramp DFD SS 1500kg 1250mm

Request a Quote Add To Quote List Remove From Quote List
