Explorer Plus™ Precision EXP
Engineered for Accuracy, Designed for Demanding Applications

EXP8201

Maximum Capacity 8,200 g
Readability 0.1 g
Pan Size 201 mm x 178 mm
Item Number: 31059105
Overview
The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This Flagship balance is crafted to meet the most demanding requirements of modern scientific research.
Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
Display
7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication
USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Modular Design, Metal Base and Housing, SST 316 weighing pan, Motorized Leveling, 2 touchless sensors and Status lights. Automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Built-in ionizer and Sample spotlight (1 mg models).
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries
Specifications
Maximum Capacity 8,200 g
Readability 0.1 g
Pan Size 201 mm x 178 mm
Internal Calibration AutoCal™ - Automatic
Draftshield
Dimensions 408 mm x 97 mm x 229 mm (LxHxW)
Battery Life Not Applicable
Legal for Trade Not Applicable
Auxiliary Display Model Available as an Accessory
Auto Door Not Applicable
Tare Range To capacity by subtraction
Working Environment 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
Net Weight 5.5 kg
In-Use Cover Included
Communication USB device;USB host x 2;RS232;Ethernet TCP/IP;WiFi/Bluetooth (available as an accessory)
Power AC Adapter (Included)
Units of Measurement Singapore Tael;Ounce Troy;Pennyweight;Grain;Kilogram;Tical;Custom;Momme;Newton;Baht;Taiwan Tael;Gram;Hong Kong Tael;Tola;Pound;Mesghal;Carat;Ounce
Minimum Weight 14 g
Display 7" colour TFT touchscreen
Pan Construction Stainless Steel
Built-in Ionizer No
Stabilization Time 1 s
Repeatability, typical 0.1 g
Minimum Weight (USP, 0.1%, typical) 140 g
Linearity ± 0.2 g
Accessories

Item Number

30472064

Description

Auxiliary display AD7-RS

Item Number

30944359

Description

Printer SF40A/BT Impact EU

Item Number

30064202

Description

Printer, Impact, SF40A, EU

Item Number

30078078

Description

Cable, RS422, 9m, EX EX-HiCap

Item Number

31059238

Description

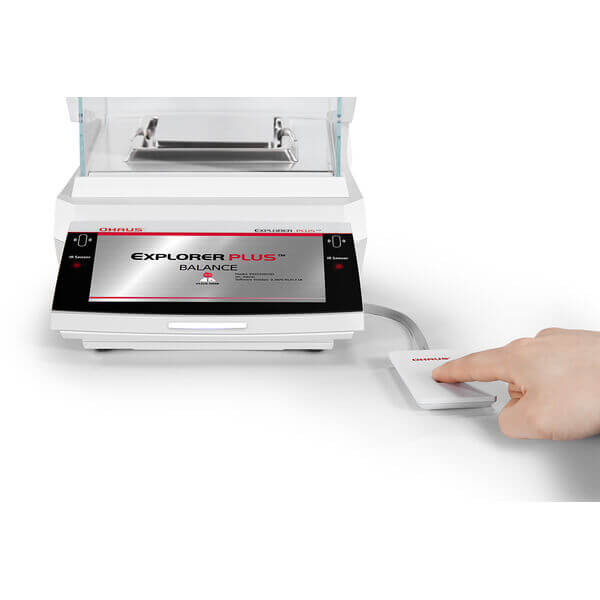

Fingerprint scanner FIN-100A

Item Number

30304101

Description

Interface Kit, RS232-USB

Item Number

12120799

Description

Paper Roll 57.5mm,SF40A

Item Number

30095929

Description

Static Ionizer, ION-100A, EU

Item Number

31059239

Description

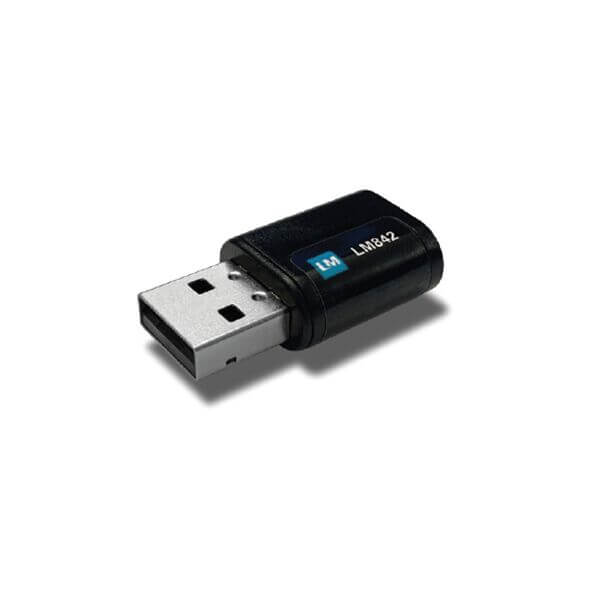

Wireless Dongle LM842
