OIML Calibration Weight Sets
Calibration Weight Sets Adjusted to Meet or Exceed OIML Class E1, E2, F1, and F2 Tolerances

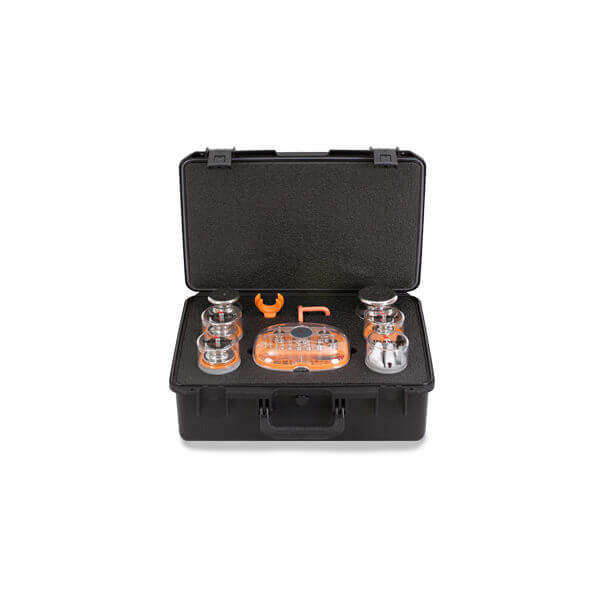

Weight Set OIML 10kg-1mg CLE1 NoCert TR

OIML Class E1
Weight Set Range 10 kg - 1 mg
Set Capacity 21.11 kg
Item Number: 30517995
Request a Quote ADD TO QUOTE LIST
View All OIML Calibration Weight Sets Models
Overview
OIML Calibration Weight Sets
Applications
Use OIML E1 as a primary reference to calibrate other mass standards and use for traceability between national mass standards and OIML E2 weights and lower. OIML E1 is appropriate for calibrating high-precision balances with readability as low as 0.1 mg.
Display
N/A
Operation
N/A
Communication
N/A
Construction
One-Piece
Design Features
Weights 50kg - 1g have a tapered neck allowing easy handling, polished mirror-like finish allowing scratches or foreign matter to be seen, and bottom of weights are recessed to reduce wear. mg weights are flat with one end turned up for easy handling.
Specifications
OIML Class E1
Weight Set Range 10 kg - 1 mg
Set Capacity 21.11 kg
Set Total Pieces 29
Protective Case Included
Construction One-piece
Density at 20°C Below 5 mg are 2.70 g/cm3;  500 mg to 5 mg are 7.95 g/cm3;  1 g and above are 8.03 g/cm3
Dimensions in Case 10.75 in x 19 in x 25 in (27.305 cm x 48.26 cm x 63.5 cm) (LxHxW)
Set Contents (2) 2 g;  (2) 200 g;  (2) 20 mg;  500 mg;  10 g;  (2) 20 g;  100 g;  100 mg;  10 mg;  (2) 200 mg;  10 kg;  1 g;  50 g;  (2) 2 kg;  5 g;  1 kg;  5 mg;  500 g;  (2) 2 mg;  50 mg;  1 mg;  5 kg
Weight Material 500 mg to 5 mg are 316 Stainless Steel;  ≥1 g are Troemner Alloy 8;  Below 5 mg are Aluminum
Wgt Origin (USA) USA
